Optimal motor cooling and a compact design achieved through the voltage controllable external rotor motor. The features of this product series are high efficiency, a low noise level, and easy for installation and maintenance.
A high static pressure be in with the forward curved blade.
A large air flow be in with the backward curved blade.
Impeller diameter range from 200 to 630 mm. Motor can be applied in different frequency and voltage.

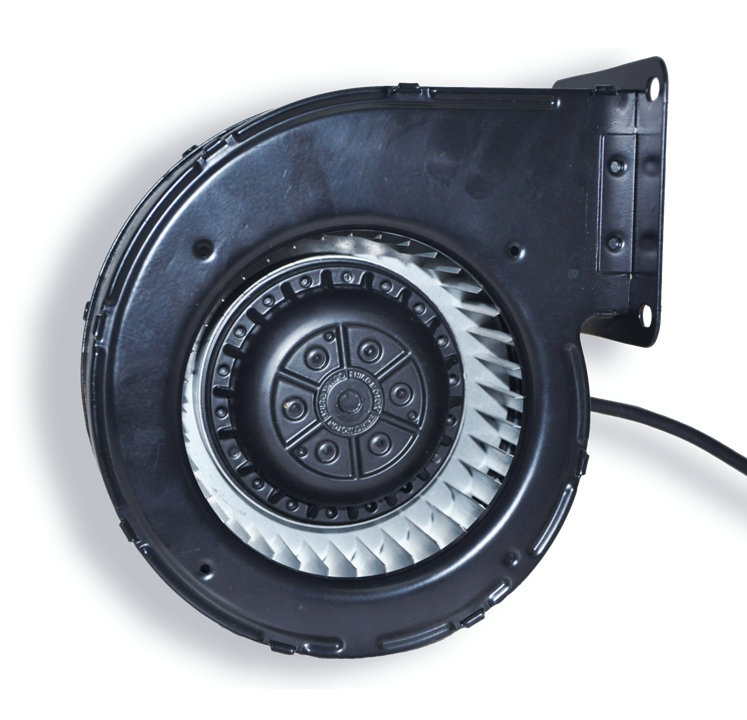

Forward Curved RSFA92 Series
Impeller diameter:120-160mm;
Max air flow:470CMH;
Max static pressure:550Pa.
Forward Curved RSFA Series
Impeller diameter:200-355mm;
Max air flow:5200CMH;
Max static pressure:800Pa.

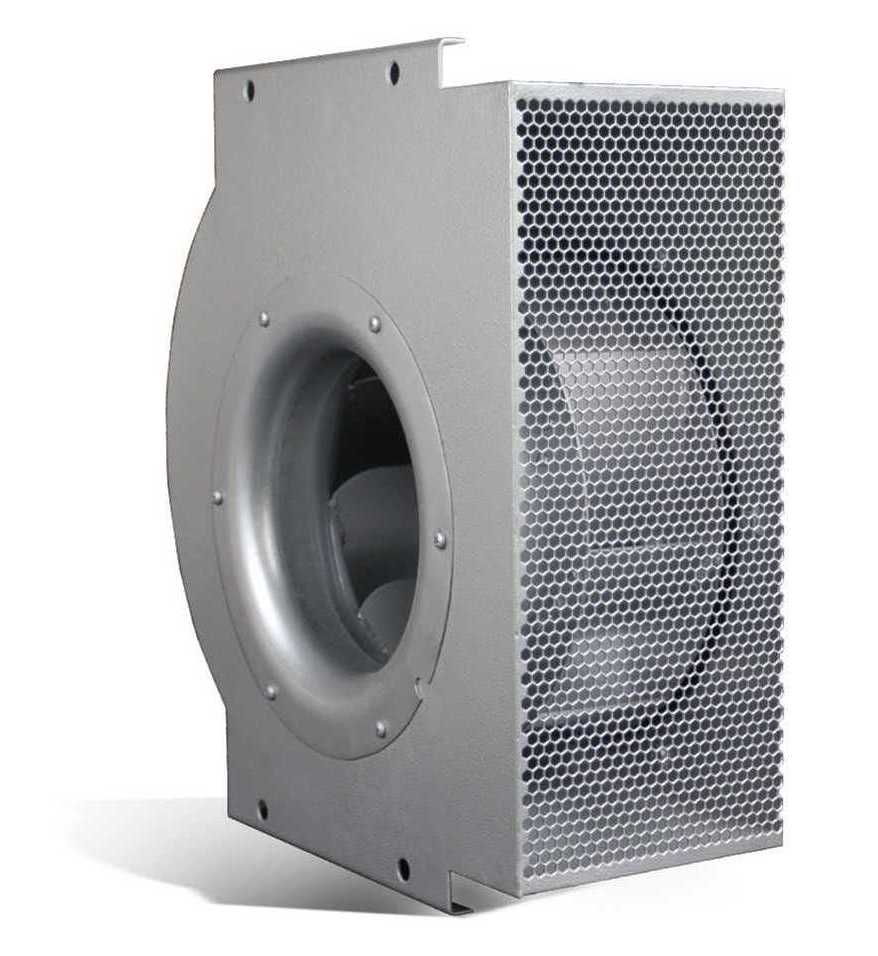

Backward Curved RSBA Series
Impeller diameter:280-630mm;
Max air flow:17000CMH;
Max static pressure:1150Pa.
· Efficiency, voltage and speed driven through controllable external rotor motor, energy saving
· Air conditioning, clean room, commercial kitchen, electric control cabinet cooling for electric device

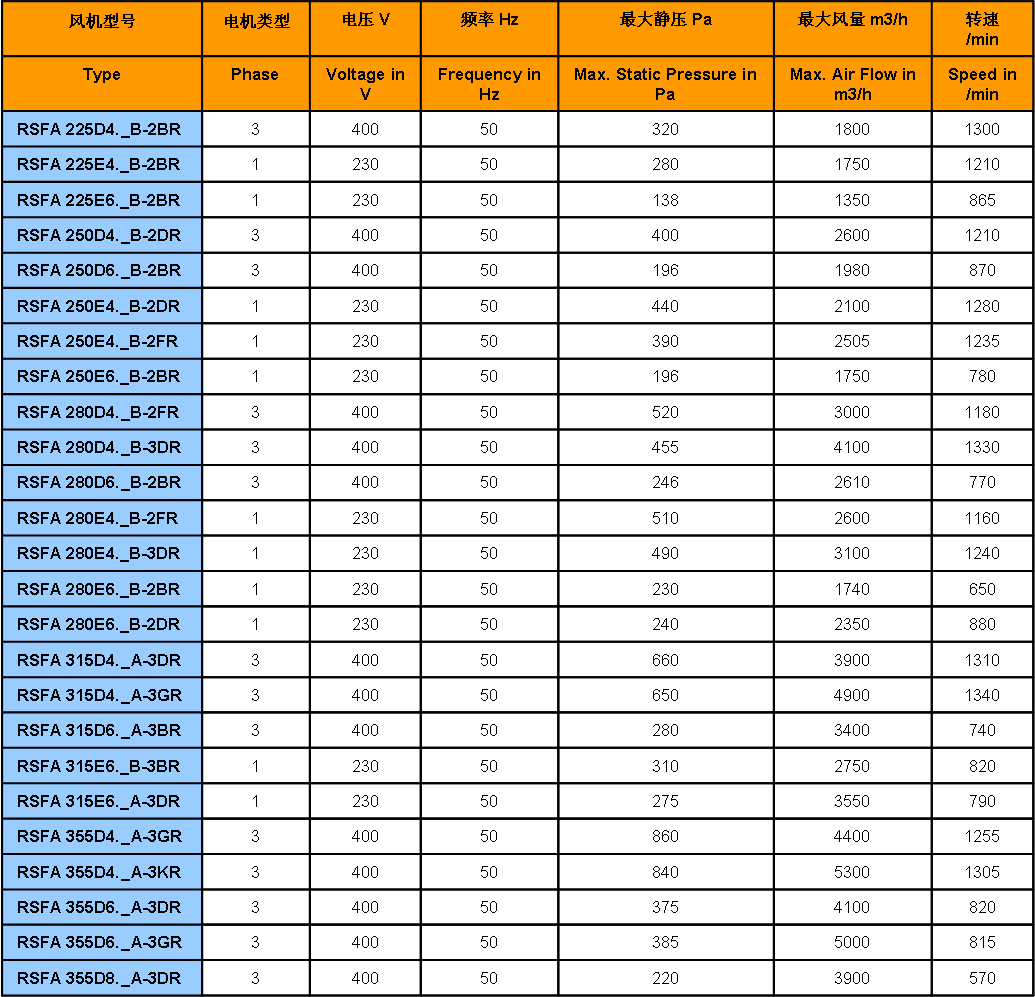

The performance data means some performance parameter in the rated working state.
We reserve the rights to make technical changes or modify the contents of this document without prior notice. Shiro does not accept any responsibility whatsoever for potential errors or possible lack of information in this document.
For each SHIRO fan, we also provide you other optional parts that satisfy your diverse need.
Each SHIRO fan has the one and only product code, including the standard and non standard products.
